Product Details:
|
| Product Name: | Artificial Grass Sports Athletic Field Court Foam Shock Pad For Futsal Soccer Rugby Hockey Baseball Fields | Sports: | Soccer, Rugby, Hockey, Badminton, Golf Greens, Golf Mats, |
|---|---|---|---|
| Thickness: | All Available | Size: | Taiolor Length For The Field Dimension |
| Width: | 1m/1.25m/1.5m/1.8m | Packing: | In Roll In Recyclable PE Bag |
| Performance: | Reduce The Overall Cost Of The Turf System | ||
| High Light: | 10mm Artificial Grass Shock Absorber,Baseball Fields Artificial Grass Shock Absorber |
||

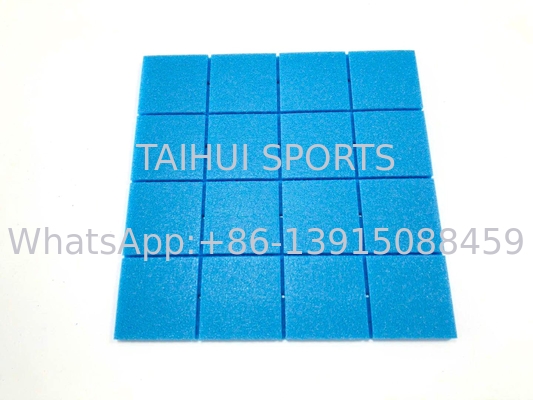

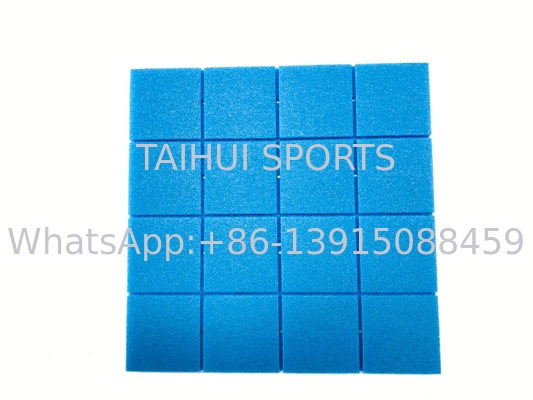

Artificial grass sports athletic field court Foam Shock Pad For futsal soccer rugby hockey baseball fields
Product Innovation Points
| 1 |
Four-side symmetric inside and four-side skew-symmetric triangle outside, making good use of physics, therefore the structure more stable |
| 2 |
The perfect combination of rubber and resin, as rubber has strong tensile properties, which can not easily be torn during the installation |
| 3 |
Layered compound proportion 4:6, to maximize shock absorption and minimize vertical deformation |
| 4 |
Diamond-shaped structure on the surface increases the coefficient of friction, and hard for pad to slide after covering the artificial grass. |
Technical Specification for Shock Pad
| Properties | Specifications | Unit | Standard |
| Material | New environmental friendly resin | IEC62321 | |
| Thickness | 10 | mm | EN1969 |
| Color | Black and Blue | ||
| Physics property | Four-side symmetric inside and four-side skew-symmetric triangle outside | ||
| Tensile strength (Horizontal) | ＞0.28 | MPa | EN12230 |
| Tensile strength (Vertical) | ＞0.25 | MPa | EN12230 |
| Structure | 3 layers | ||
| Shock absorption | ＞35 | % | EN14808 |
| Vertical deformation | 4-8 | mm | EN14809 |
| Water infiltration rate | >20000 | Mm/h | EN12626 |
| Eco-friendly |
Food-grade (EU standard) |
||
| Product in rolls: width 1.5m±10% ,length tailored for the pitch. | |||
| Production Plant: Changzhou Taihui Sports Material Co.,Ltd | |||
| Based on the material characteristics following layers are suitable for use in sport construction: | |||
Advantages
| Installation of our shock-pad system is more convenient as the material is lightweight and easy to handle. |
| Roll lengths can be manufactured to client’s requirements to ensure no wastage. |
| The closed-cell Foam does not absorb water; therefore inclement weather does not hinder the laying of pad. |
| Perfect cutting technology ensures good water permeability and the stability. |
| Excellent ‘shock absorption’ and ‘ball rebound’ characteristics. |
| The surface has an prolonged life span and is not prone to deterioration. |
| Good weathering resistance. |
| Stable shock absorption. |
| No need of maintenance during daily use. |
| Good environmental performance and recycling value. |
| Flame retardant. |
Our Achievements on Site
We manufacture shock pad underlay and rubber granule infill to support artificial turf pitch for sports and landscaping. Trust we will support you by excellent quality and friendly price. Our products will make your artificial turf pitch fantastic!
Welcome for any inquiry.
