Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields

Certification
China CHANGZHOU TAIHUI SPORTS MATERIAL CO.,LTD certification
China CHANGZHOU TAIHUI SPORTS MATERIAL CO.,LTD certification
I'm Online Chat Now

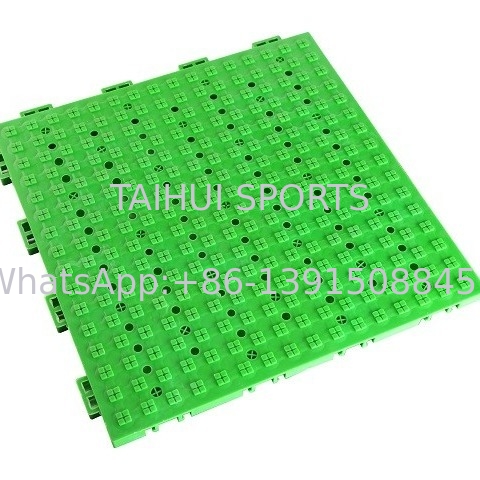

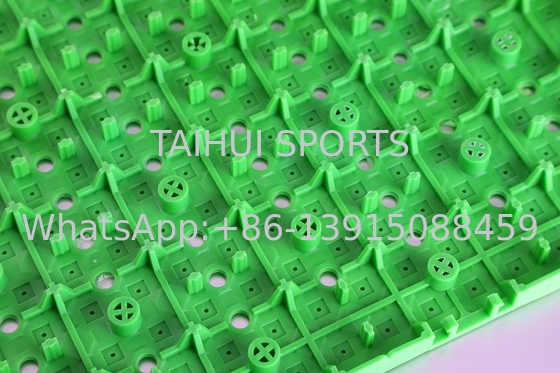

Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields

Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields
Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields

Large Image :  Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields

Product Details:
Place of Origin: CHINA
Brand Name: TAIHUI
Certification: LABOSPORT
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 500M2
Packaging Details: PALLET
Delivery Time: 10 DAYS
Payment Terms: T/T
Supply Ability: 500M2 /DAY

Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields

Description
Material: Rubber Thickness: 14mm
Color: Green Style: Tile Pattern
Name: Rubber Shock Pad For Artificial Grass
Highlight:

Green Rubber Shock Pad

,

14mm Rubber Shock Pad

,

Rubber Shock Pad For Artificial Grass

Artificial Grass Drainage Underlay for Sports Fields Drainage Shock Absorber



Our Drainage Shock Absorber is a foundation thermoplastic rubber sheet with high shock absorption, large amount of water drainage and strong support. The original intention of this product is to help the sports venue no longer get hardened, realizing the fast installation, fast replacement and fast removing.



Properties Specifications Unit Standard
Material TPE
Thickness 17.1 mm EN1969:2000
Dimension for single piece L 354*W 131 mm Physical Measured
Color Green/Grey
Max force 205 N EN12230:2003
Max tensile strength 0.47 Mpa
Elongation 83 %
Shock absorption 56.9 % Advanced Artificial Athlete - CEN/TS 16717:2015.
Vertical deformation 4.9 mm
Mass per unit area 3,812 g/m2 EN ISO 23997:20124
Water infiltration rate >24,000 mm/h EN 12616: 2013





Product advantages



1 Hydrophobic function to ensure smooth drainage, and no ponding in rainy days. Avalaible for all-weather use.
2 In winter, rubber will not get brittle like plastic products, its sufficient elasticity can protect the human body from impact.
3 The shock absorbing function makes the product neither very soft to let the athletes feel weak, nor too hard to lose the protection.
4 Service life 15 years.
5 Environmental safety, and recyclable. It is real green and sustainable production.
6 Product will not get deformed. The installation is very simple, even non-professional people can complete the installation so to lower down the costs. Good to be applied for non-filling artificial grass field.
7 Available for small or difficult venues, such as building top, underneath bridge, etc.
8 The transportation of the product is convenient, flexible and fast, and also can be collected quickly.



Product installation site



Green 14mm Rubber Shock Pad For Artificial Grass / Sports Fields 0
