Product Details:
|
| Product Name: | Hockey Baseball Artificial Turf Underlay 12mm 15mm 20mm Water Drainage Horizontally Comply With EN15330-4 | Application: | Soccer, Rugby, Hockey, Badminton |
|---|---|---|---|
| Structure: | Three Layers With Film On The Backing To Enhance The Tensile Strength And UV Protection In Black And Blue Bicolor. | Length: | Tailored For Pitch |
| Standard Thickness: | 8mm/10mm/12mm/15mm/20mm/25mm/30mm | Width: | 1.5 Meter |
| High Light: | Baseball Artificial Turf Underlay,Artificial Turf Underlay 12mm,15mm artificial grass foam underlay |
||
Hockey Baseball Artificial Turf Underlay 12mm 15mm 20mm Water Drainage Horizontally Comply with EN15330-4
Our shock absorbing underlay for artificial grass is made of three layers with film on the backing to enhance the tensile strength and UV protection in black and blue bicolor. It helps to reduce the overall cost of the artificial grass system, enhance the performance and extend the life span of the system.
Description:
►Adopting a professional ratio of composite process, both to increase the impact of absorption, but also reduce the vertical deformation.
►With double-sided synchronous grooved technology, to enhance the water drainage in four directions while reducing the stress.
Product Analyst
| Structure | Our shock pad has been adopted proportion 4:6 and three-layer composite technology. Compared with one-time foaming process product, one-time foaming product is easily deformed, and elasticity lost too quickly make it difficult to restore elasticity after long-term use. |
| Material | The perfect combination of new environmental protection resin and rubber foam, rubber has a strong tensile strength and softness, which ensure the strong elasticity and softness brings sense of comfort at the same time. The UV resistant film brings the long service life for the shock pad who is more environmentally friendly, no odor. |

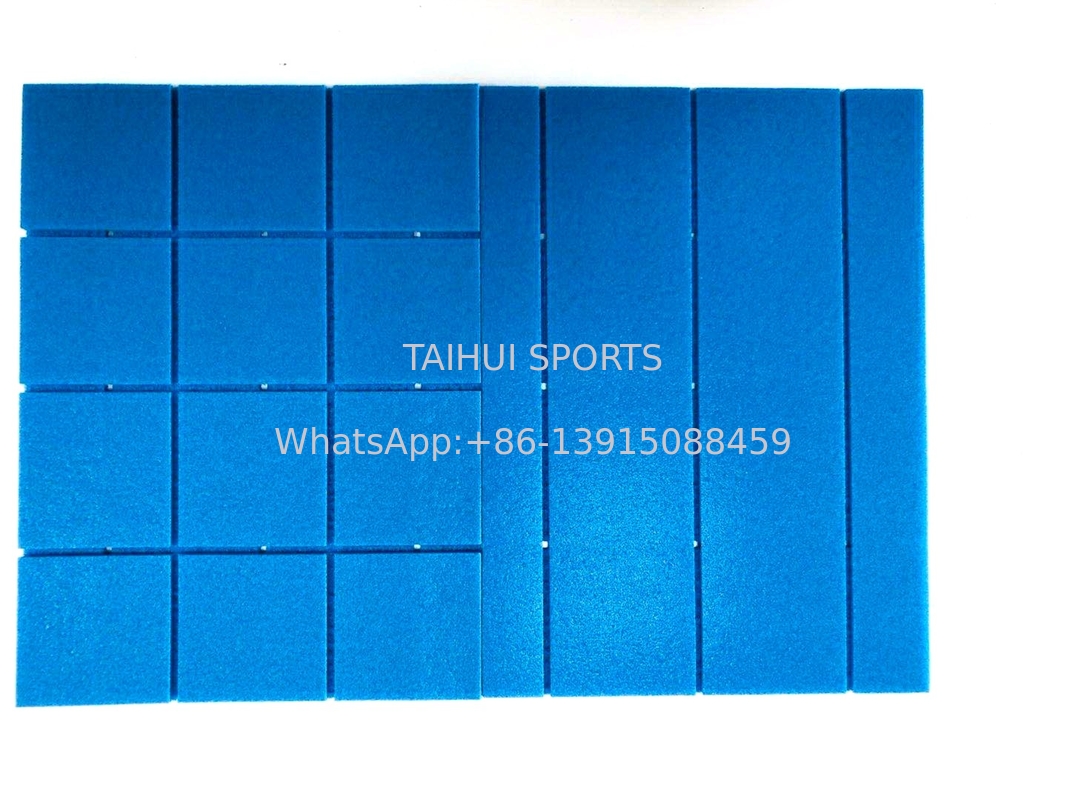

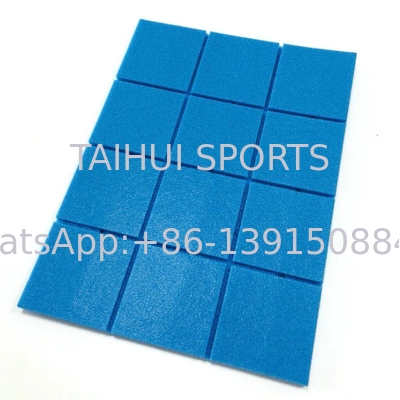

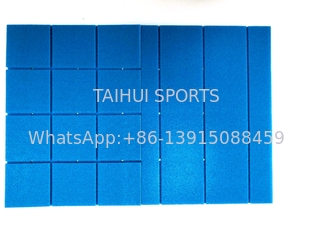

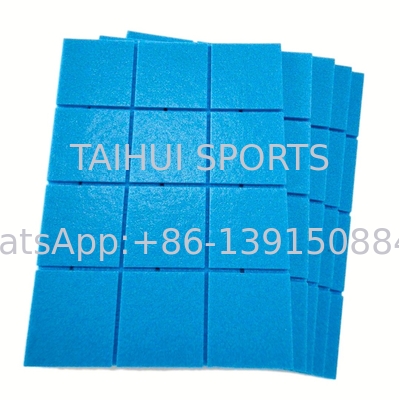

| Cutting technology | Cutting grooves vertically and horizontally with holes to make sure water drainage in four directions, and installation more even. |
| Tensile strength | Three-layer structure and characteristics of rubber makes the shock pad with the strong tensile strength, which will protect the product from deformation and damage during the installation. Tensile strength of one-time forming process product is poor. |
Applications:
Products are mainly used for soccer, rugby, Baseball, hockey, badminton, golf greens, golf mats, children safety system, tennis and sports recreation area .
| Artificial turf Sports Pitch Indoor&Outdoor | soccer, rugby, baseball hockey, badminton, golf greens, golf mats, children safety system, tennis and sports recreation area . |
Competitive Advantage:
Cost
Performance
Technical Data Sheet
| T2004B/2006K is a shock absorbing underlay for artificial grass. This product is made of three layers with film on the backing to enhance the tensile strength and UV protection in black and blue bicolor. | |||
| Technical Specification for Shock Pad | |||
| Properties | Specifications | Unit | Standard |
| Material | New environmental friendly resin | IEC62321 | |
| Thickness | 10 | mm | EN1969 |
| Color | Black and Blue | ||
| Physics property | Four-side symmetric inside and four-side skew-symmetric triangle outside | ||
| Tensile strength (Horizontal) | ＞0.35 | MPa | EN12230 |
| Tensile strength (Vertical) | ＞0.30 | MPa | EN12230 |
| Structure | 3 layers | ||
| Shock absorption | ＞45 | % | EN14808 |
| Vertical deformation | 4-6 | mm | EN14809 |
| Water infiltration rate | >20000 | Mm/h | EN12626 |
| Eco-friendly |
Food-grade (EU standard) |
||
Our Installation on Site
We manufacture shock pad underlay and rubber granule infill to support artificial turf pitch for sports and landscaping. Welcome to visit www.taihuisports.com. Trust we will support you by excellent quality and friendly price. Our products will make your artificial turf pitch fantastic! www.taihuisports.com
Welcome for any inquiry.
